$1,749.00

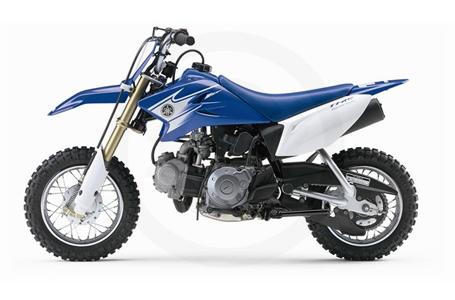

2007 Yamaha TT-R50E
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Nobody gets more out of a day in the dirt than a kid. The electric-start TT-R50E is just the thing.

    Key Features
    • The TT-R50E gets the same pushbutton electric starting feature as our full line of electric start TT-Rs.
    • Great for learning and/or playing, complete with 49cc of four-stroke fun feeding power through a three-speed automatic-clutch transmission.
    • Big YZ styling meets little peoples’ stature; the seat’s only 21.9 inches from the dirt.
    • Inverted fork and Monocross rear end provide great handling.
    • Large cover leaves little chain exposed for maximum efficiency with minimal maintenance.
    • California green sticker compliant.
    Engine
    • 49cc air-cooled, SOHC powerplant puts out smooth, reliable four-stroke power perfect for kids and small novices.
    • Three-speed gearbox with automatic centrifugal clutch makes keeping the engine in its powerband a breeze.
    • Convenient electric starter for effortless starting.
    • New-design cases keep overall engine width down to 296mm, for a narrow feel and great handling.
    • 13mm Mikuni VM-type carburetor with automatic on/off electric heater ensures crisp, dependable throttle response.
    • Automatic cam chain tensioner reduces maintenance.
    • CDI ignition system delivers hot, reliable spark and requires minimal maintenance.
    • Lightweight, upswept exhaust system contains a quiet, WR-type USFS-approved spark arrestor.
    Chassis/Suspension
    • New design curved steel backbone frame keeps the TT-R50E narrow and has three engine-mounting points for excellent rigidity and handling.
    • Inverted fork with 22mm sliders provides 3.8 inches of smooth front wheel travel for a great ride and handling.
    • Monocross style rear suspension is controlled by a single coil-over shock and provides 2.8 inches of bump-smothering rear wheel travel.
    • Front and rear 80mm drum brakes deliver strong, dependable stopping power, and the rear’s activated by a right foot pedal just like the big YZs.
    • Ten-inch front and rear wheels with knobby tires offer great grip and exceptional wear.
    • Low, 21.9-inch seat height allows most kids to put both feet down for handling-enhancing and added confidence.
    Additional Features
    • Key type ignition switch deters unauthorized riding.
    • Throttle stop screw lets the adult supervisor restrict speed while beginners are learning.
    • Cool-looking YZ bodywork includes an integrated front fender/number plate.
    • Standard sidestand tucks up out of the way when not in use.
    • Handy choke lever is located right in front of the main switch.
    • Large, folding cleated footpegs provide excellent footing even in wet or muddy conditions.
    Engine Specifications
    • Type: 49cc air-cooled, SOHC 4-stroke, single w/electric start
    • Bore x Stroke: 36mm x 48.6mm
    • Compression Ratio: 9.5:1
    • Carburetion: 13mm Mikuni VM with electric heater
    • Ignition: CDI
    • Transmission: 3-speed w/automatic clutch
    • Final Drive: Chain
    Chassis Specifications
    • Suspension/Front: Inverted telescopic fork; 3.8" travel
    • Suspension/Rear: Monocross, single coil-over shock absorber, 2.8" travel
    • Brakes/Front: 80mm drum
    • Brakes/Rear: 80mm drum
    • Tires/Front: 2.50-10-4PR
    • Tires/Rear: 2.50-10-4PR
    Dimensions
    • Length: 51.4” (1305 mm)
    • Width: 23.4" (595 mm)
    • Height: 30.5” (775 mm)
    • Seat Height: 21.9” (555 mm)
    • Wheelbase: 36.4” (925 mm)
    • Ground Clearance: 5.3”
    • Dry Weight: 119 lb. (54 kg)
    • Fuel Capacity: 0.8 gal. (3.1 l)
    Other
    • Warranty: 90 Day (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type SOHC 4-stroke, single w/electric start
    Displacement 49 cc
    Bore and Stroke 36 x 48.6 mm
    Cooling Air-cooled
    Compression Ratio 9.5:1
    Fuel System 13mm Mikuni VM with electric heater
    Ignition CDI
    Chassis
    Front Suspension Inverted telescopic fork; 3.8" travel
    Front Brakes 80mm drum
    Front Tire 2.50-10-4PR
    Rear Suspension Monocross, single coil-over shock absorber, 2.8" travel
    Rear Brakes 80mm drum
    Rear Tire 2.50-10-4PR
    Dimensions
    Dry Weight 119 lbs. (54 kg)
    Fuel Capacity 0.8 gal. (3.1 l)
    Wheelbase 36.4 in. (925 mm)
    Ground Clearance 5.3 in. (135 mm)
    Seat Height 21.9 in. (555 mm)
    Transmission
    Transmission 3-speed w/automatic clutch
    Final Drive Chain
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2007
    Manufacturer Yamaha
    Model TT-R50E
    Style Off-Road
    MSRP* $1,749.00
    Chassis
    Front Suspension Inverted telescopic fork; 3.8" travel
    Front Brakes 80mm drum
    Front Tire 2.50-10-4PR
    Rear Suspension Monocross, single coil-over shock absorber, 2.8" travel
    Rear Brakes 80mm drum
    Rear Tire 2.50-10-4PR
    Dimensions
    Dry Weight 119 lbs. (54 kg)
    Fuel Capacity 0.8 gal. (3.1 l)
    Wheelbase 36.4 in. (925 mm)
    Ground Clearance 5.3 in. (135 mm)
    Seat Height 21.9 in. (555 mm)
    Trail
    Rake
    Engine
    Engine Type SOHC 4-stroke, single w/electric start
    Displacement 49 cc
    Bore and Stroke 36 x 48.6 mm
    Cooling Air-cooled
    Compression Ratio 9.5:1
    Fuel System 13mm Mikuni VM with electric heater
    Ignition CDI
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)
    Transmission
    Transmission 3-speed w/automatic clutch
    Final Drive Chain
