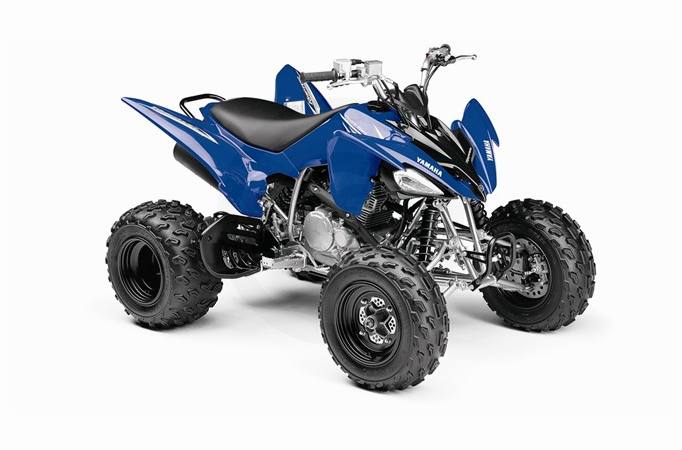

2009 Yamaha Raptor 250

OUT THE DOOR EVENT

Now until September 30, 2010
$800.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form

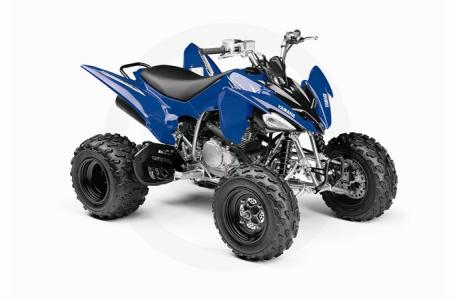

Click here to view full image.
Team Yamaha Blue/White
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • Lightest production sport ATV ever provides amazingly nimble handling and a great power-to-weight ratio.
    • Aggressive Raptor style and stance gives maximum performance and excellent, all-day sport-riding ergonomics.
    • Class-exclusive five-speed manual transmission has a gear for almost any terrain.
    • Torquey, durable air-cooled engine puts out plenty of power and starts with the push of a button.
    • Low-profile 19-inch rear tires boast outstanding traction and handling.
    • Longest suspension travel and lowest seat in its class for true sport handling.
    Engine Features
    • Light and powerful 249cc air-cooled SOHC four-stroke single produces a broad, deep powerband.
    • Five-speed gearbox with manual clutch provides the flexibility to tackle pretty much any track or trail.
    • Mikuni® 29mm carburetor provides light throttle pull and excellent throttle response across the entire rpm range.
    • Electric starting is standard equipment and works in any gear.
    • DC-CDI ignition system delivers consistent spark at all rpm levels—for quick throttle response and a smooth, broad powerband.
    • Ceramic-composite cylinder liner allows for greatly reduced wear and excellent heat dissipation.
    • Oil cooler keeps engine temps down and lubrication up in hot conditions.
    • Airbox features no-tools air filter access.
    • Three-chamber muffler is light, quiet and boosts low and midrange performance.
    Chassis/Suspension Features
    • Light, strong, short-wheelbase chassis creates a quick, super-responsive high-performance package.
    • Low, 28.7-inch seat height enhances rider comfort and allows optimal rider movement.
    • Independent double-wishbone front suspension with five-way preload-adjustable shocks gives 7.5 inches of wheel travel.
    • Lightweight aluminum wheels reduce unsprung weight for excellent suspension performance, acceleration, deceleration and handling.
    • Triple hydraulic disc brakes deliver excellent stopping power even in wet conditions.
    • Extra-wide, YFZ450-style footpegs provide excellent grip and rider comfort.
    • Easy-to-use, flip-type handlebar-mounted parking brake can be set with one hand.
    • Rigid and light swingarm rear end is controlled by a shock with adjustable preload and 7.9 inches of wheel travel, for consistent wheel control and rider comfort.
    • Dunlop® tires deliver outstanding traction for razor-sharp handling in a variety of terrain.
    • Easy-adjust eccentric chain adjustment feature means hassle-free chain maintenance.
    • Flat, composite skidplates provide maximum underbelly protection.
    • Rugged steel grab bars front and rear help fend off debris and damage.
    Additional Features
    • Dual 30-watt multi-reflector Krypton headlights straight off the potent YFZ450 add the perfect menacing appearance. Taillight has an incorporated brake light for added convenience.
    • Waterproof electrical connectors provide outstanding durability and reliability.
    • Easy-access grease fittings on all chassis lubrication points simplify maintenance and help extend the life of the Raptor 250.
    • Bodywork comes off without the need to disassemble electrical parts, airbox or wiring harness—for easy maintenance.
    • A 2.4-gallon fuel tank means less filling up and longer, more enjoyable rides.
    Engine Specifications
    • Type: 249cc air-/oil-cooled 4-stroke; SOHC, 2 valves
    • Bore x Stroke: 74.0 x 58.0mm
    • Compression Ratio: 9.5:1
    • Carburetion: Mikuni® 29mm BSR
    • Ignition: DC-CDI
    • Starting System: Electric
    • Transmission: 5-speed; wet multiplate clutch
    • Drive Train: 2WD; sealed O-ring chain, eccentric adjustment
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload-adjustable shocks, 7.5-in travel
    • Suspension/Rear: Swingarm, preload-adjustable, 7.9-in travel
    • Brakes/Front: Dual hydraulic disc
    • Brakes/Rear: Hydraulic disc
    • Tires/Front: AT20 x 7-10
    • Tires/Rear: AT19 x 10-9
    Dimensions
    • L x W x H: 64.0 x 42.1 x 40.9 in
    • Seat Height: 28.7 in
    • Wheelbase: 43.7 in
    • Ground Clearance: 3.9 in
    • Fuel Capacity: 2.4 gal
    • Dry Weight: 313 lb
    Other
    • Lighting: Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    • Warranty: 6 Month (Limited Factory Warranty)
    • Colors: Team Yamaha Blue/White, White/Red

    Specifications

    Engine
    Engine Type 4-stroke; SOHC, 2 valves
    Displacement 249 cc
    Bore x Stroke 74.0 x 58.0 mm
    Engine Cooling Air-/oil-cooled
    Fuel System Mikuni® 29 mm BSR
    Starting System Electric
    Chassis
    Front Suspension Independent double wishbone; 5-way preload-adjustable shocks
    Front Travel 7.5 in.
    Front Brake Type Dual hydraulic disc
    Front Tires AT20 x 7-10
    Rear Suspension Swingarm, preload-adjustable
    Rear Travel 7.9 in.
    Rear Brake Type Hydraulic disc
    Rear Tires AT19 x 10-9
    Dimensions/Capacities
    Dry Weight 313 lbs
    Fuel Capacity 2.4 gal
    Ground Clearance 3.9 in.
    Machine Dimensions (LxWxH) 64.0 x 42.1 x 40.9 in.
    Wheelbase 43.7 in.
    Drive Train
    Drive Train 2WD; sealed O-ring chain, eccentric adjustment
    Transmission 5-speed; wet multiplate clutch
    General
    Lighting Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    Colors Team Yamaha Blue/White, White/Red
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model Raptor 250
    Style Sport
    MSRP* $6,099.00
    Chassis
    Front Suspension Independent double wishbone; 5-way preload-adjustable shocks
    Front Travel 7.5 in.
    Front Brake Type Dual hydraulic disc
    Front Tires AT20 x 7-10
    Rear Suspension Swingarm, preload-adjustable
    Rear Travel 7.9 in.
    Rear Brake Type Hydraulic disc
    Rear Tires AT19 x 10-9
    Frame
    Dimensions/Capacities
    Dry Weight 313 lbs
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.4 gal
    Ground Clearance 3.9 in.
    Machine Dimensions (LxWxH) 64.0 x 42.1 x 40.9 in.
    Wheelbase 43.7 in.
    Drive Train
    Drive Train 2WD; sealed O-ring chain, eccentric adjustment
    Final Drive
    Transmission 5-speed; wet multiplate clutch
    Engine
    Engine Type 4-stroke; SOHC, 2 valves
    Displacement 249 cc
    Bore x Stroke 74.0 x 58.0 mm
    Cylinders
    Engine Cooling Air-/oil-cooled
    Fuel System Mikuni® 29 mm BSR
    Starting System Electric
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting Dual 30W Krypton multi-reflector headlights & 21/5W brakelight
    Colors Team Yamaha Blue/White, White/Red
    Warranty 6 Month (Limited Factory Warranty)
