$2,349.00

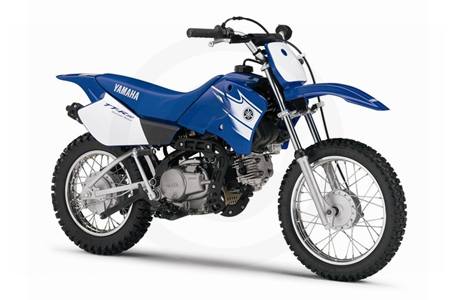

2007 Yamaha TT-R90E
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

When it's time to step it up a notch, the three-speed automatic-clutch four-stroke-powered TT-R90E is the way to go. Complete with big TT-R styling cues and electric start.

    Key Features
    • Pushbutton electric starting lets the little people get going and keep going on their own.
    • A low-maintenance 89cc air-cooled, SOHC powerplant puts out the kind of smooth, predictable power perfectly suited to novice riders.
    • A smooth-shifting three-speed transmission with automatic clutch eases beginners into the basics of gear-shifting and lets them concentrate on the track or trail.
    • Low, 24.6-inch seat height allows short riders to put both feet down for added confidence.
    Engine
    • 89cc of four-stroke power means a linear, nonintimidating powerband that’s perfect for novices and even experienced play riders.
    • 16mm Mikuni carburetor ensures crisp, dependable throttle response.
    • Three-speed automatic-clutch transmission lets the TT-R90E thrive in all kinds of terrain even under novice riders.
    • CDI ignition system delivers hot, reliable spark and requires minimal maintenance.
    • Convenient electric starter means effortless starting.
    • Lightweight, upswept exhaust system features quiet, USFS-approved spark arrestor.
    Chassis/Suspension
    • Rigid frame design combines with a compact, 40.9-inch wheelbase for agile, predictable handling.
    • Front and rear drum brakes deliver strong, dependable stopping power.
    • 14-inch front and 12-inch rear wheels with knobby tires offer superb grip and exceptional wear.
    • 26mm telescopic front fork with 4.3 inches of travel for confidence-inspiring control over rough terrain.
    • Single rear shock with 3.7 inches of travel delivers progressive suspension performance to smooth out rugged trails.
    • 6.3 inches of ground clearance and a rugged engine skid plate maximize undercarriage protection.
    Additional Features
    • Long, motocross-style seat is low, comfortable and allows easy rider movement.
    • Team Yamaha–inspired colors, graphics, and front and side number plates create styling similar to larger YZ lineup.
    • Large, folding cleated footpegs provide excellent footing even in wet or muddy conditions.
    Engine Specifications
    • Type: 89cc, air-cooled, SOHC 4-stroke single w/electric start
    • Bore x Stroke: 47mm x 51.8mm
    • Compression Ratio: 8.5:1
    • Carburetion: 16mm Mikuni
    • Ignition: CDI
    • Transmission: 3-speed w/automatic clutch
    • Final Drive: Chain
    Chassis Specifications
    • Suspension/Front: 26mm telescopic fork; 4.3" travel
    • Suspension/Rear: Single shock; 3.7" travel
    • Brakes/Front: 95mm Drum
    • Brakes/Rear: 110 mm Drum
    • Tires/Front: 2.50-14
    • Tires/Rear: 3.00-12
    Dimensions
    • Length: 60" (1525 mm)
    • Width: 23.8" (605 mm)
    • Height: 34.1" (865 mm)
    • Seat Height: 24.6" (625 mm)
    • Wheelbase: 40.9" (1040 mm)
    • Ground Clearance: 6.3"
    • Dry Weight: 139 lb. (64 kg)
    • Fuel Capacity: 1.1 gal. (4.2 l)
    Other
    • Warranty: 90 Day (Limited Factory Warranty)

    Specifications

    Engine
    Engine Type SOHC 4-stroke single w/electric start
    Displacement 89 cc
    Bore and Stroke 47 x 51.8 mm
    Cooling Air-cooled
    Compression Ratio 8.5:1
    Fuel System 16mm Mikuni
    Ignition CDI
    Chassis
    Front Suspension 26mm telescopic fork; 4.3" travel
    Front Brakes 95mm Drum
    Front Tire 2.50-14
    Rear Suspension Single shock; 3.7" travel
    Rear Brakes 110 mm Drum
    Rear Tire 3.00-12
    Dimensions
    Dry Weight 139 lbs. (64 kg)
    Fuel Capacity 1.1 gal. (4.2 l)
    Wheelbase 40.9 in. (1040 mm)
    Ground Clearance 6.3 in.
    Seat Height 24.6 in. (625 mm)
    Transmission
    Transmission 3-speed w/automatic clutch
    Final Drive Chain
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2007
    Manufacturer Yamaha
    Model TT-R90E
    Style Off-Road
    MSRP* $2,349.00
    Chassis
    Front Suspension 26mm telescopic fork; 4.3" travel
    Front Brakes 95mm Drum
    Front Tire 2.50-14
    Rear Suspension Single shock; 3.7" travel
    Rear Brakes 110 mm Drum
    Rear Tire 3.00-12
    Dimensions
    Dry Weight 139 lbs. (64 kg)
    Fuel Capacity 1.1 gal. (4.2 l)
    Wheelbase 40.9 in. (1040 mm)
    Ground Clearance 6.3 in.
    Seat Height 24.6 in. (625 mm)
    Trail
    Rake
    Engine
    Engine Type SOHC 4-stroke single w/electric start
    Displacement 89 cc
    Bore and Stroke 47 x 51.8 mm
    Cooling Air-cooled
    Compression Ratio 8.5:1
    Fuel System 16mm Mikuni
    Ignition CDI
    General
    Colors Team Yamaha Blue/White
    Warranty 90 Day (Limited Factory Warranty)
    Transmission
    Transmission 3-speed w/automatic clutch
    Final Drive Chain
